Accentra52i-TC Pellet Insert

The Accentra52i-TC pellet insert is easier, smarter and quieter than ever before. Enhanced with our exclusive Easy Touch Control and illuminated glass hopper lid, the Accentra52i-TC includes our legendary Pellet Pro Technology, ESP technology, flame reactive mirrored glass and much more. With up to 50% less required maintenance than any other pellet insert available today, the Accentra52i-TC gives you something no other pellet insert can – time.

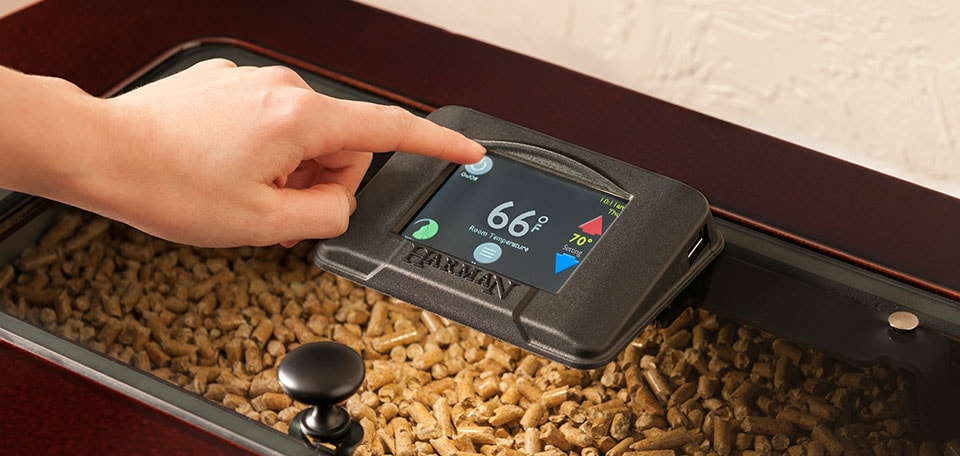

  • Smart operation with EASY Touch Controls
  • Save money with built-in programmable thermostat
  • View fuel levels easily with tinted hopper lid and LED light
  • Less loading with up to 64.5 lb hopper capacity
  • Easy, Low maintenance
  • Elegant flame reactive mirrored glass
  • Installation made easy with direct vent

Product Specs

Dimensions in inches. Refer to installation/owner’s manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.



Accentra52i Pellet Insert 24″ with Touch Control:
Appliance Width: 41-13/16″
Appliance Height: 32-1/8″
Appliance Depth1: 29-5/16″
Depth Minimum Firebox Opening: 15-9/16″
Hearth Front Width: 30″
Hearth Depth: 16-1/2″
Extension Onto Hearth: 16-1/2″
Fuel Type: Pellet
BTU/hr Input2: 11,200 – 50,300
Heating Capacity3: 900 – 2,600 sq ft
Hopper Capacity4: 20″: 47-1/2 lbs; 22″: 58 lbs; 24″: 64-1/2 lbs
Viewing Area: 181-1/8 sq in
Efficiency5: 81.3%
Emissions: 1.1 grams/hour
Accentra52i Pellet Insert 22″ with Touch Control:
Appliance Width: 41-13/16″
Appliance Height: 32-1/8″
Appliance Depth1: 29-5/16″
Depth Minimum Firebox Opening: 15-9/16″
Hearth Front Width: 30″
Hearth Depth: 16-1/2″
Extension Onto Hearth: 16-1/2″
Fuel Type: Pellet
BTU/hr Input2: 11,200 – 50,300
Heating Capacity3: 900 – 2,600 sq ft
Hopper Capacity4: 20″: 47-1/2 lbs; 22″: 58 lbs; 24″: 64-1/2 lbs
Viewing Area: 181-1/8 sq in
Efficiency5: 81.3%
Emissions: 1.1 grams/hour
Accentra52i Pellet Insert 20″ with Touch Control:
Appliance Width: 41-13/16″
Appliance Height: 32-1/8″
Appliance Depth1: 29-5/16″
Depth Minimum Firebox Opening: 15-9/16″
Hearth Front Width: 30″
Hearth Depth: 16-1/2″
Extension Onto Hearth: 16-1/2″
Fuel Type: Pellet
BTU/hr Input2: 11,200 – 50,300
Heating Capacity3: 900 – 2,600 sq ft
Hopper Capacity4: 20″: 47-1/2 lbs; 22″: 58 lbs; 24″: 64-1/2 lbs
Viewing Area: 181-1/8 sq in
Efficiency5: 81.3%
Emissions: 1.1 grams/hour




1 Appliance Depth includes entire unit including depth of firebox and extension onto hearth.2 BTU/hr Input based on maximum feed rate per hour multiplied by approximately 8600 BTU, which is average BTU from a pound of pellets.

3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

4 Fuel density and pellet shape will affect hopper capacity.

5 Weighted Average LHV (Low Heating Value) efficiency.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
